Seat Suspension
location： Home > Products > Seat Suspension
Seat Suspension 2604002

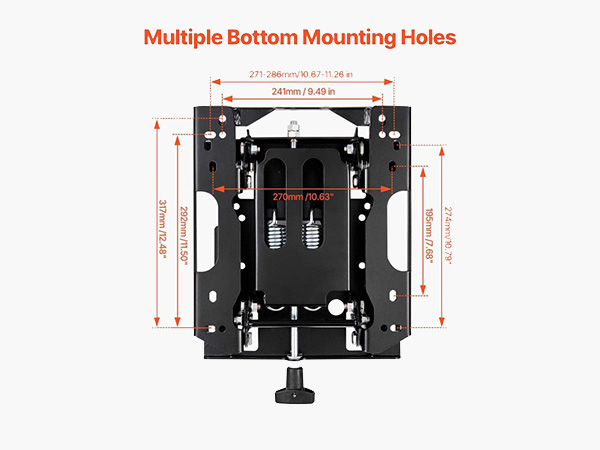

Upper Hole Spacing：270mm*325mm
Upper Hole Spacing(Option 2): 279mm*292mm
Lower Hole Spacing：210mm*380mm
Lower Hole Spacing(Option 2):241mm*317mm
Suspension Stroke：30mm

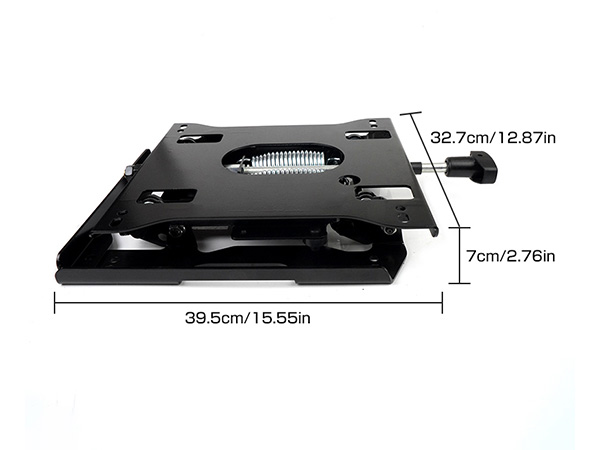

Overall Dimension：327mm*395mm*70mm
| Product Name | Low profile Seat Suspension For Lawn Mower |
| Model Number | SBZ-010 |
| Style | Manual Adjustment |
| Adjust Gears | 6 |
| Height Adjustment Range | ±60 mm |
| Adjustable Height | 70-130mm |
| Tilt Adjustment | Yes |
| Lower Mounting Hole Pitch | 290*215mm |
| Lower Mounting Hole Size | 8.2mm |
| Colour | Black |
| Surface Treatment | Electrocoating |
| Customization | Colour, Size, Logo & Package |
| Material | Steel+Engineered Plastic |
